Concrete machinery


Hydraulic Block Machines Manufacturer

Hydraulic Block Machines

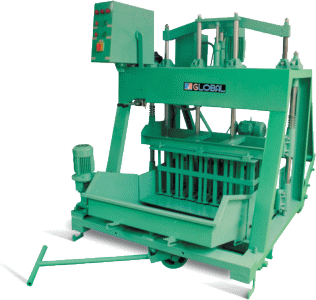

860G HYDRAULIC OPERATED CONCRETE BLOCK MAKING MACHINE

POWER REQUIRED : 5 HP
NO. OF OPERATIONS : 50 - 60 PER HOUR
VIBRATOR MOTOR: 1.5HP, 440V, 3PH
HYDRAULIC PUMP MOTOR : 3HP, 440V, 3PH
TRAVEL MOTOR : 0.5HP, 440V, 3PH
MACHINE WEIGHT : 1500KG (APPROX.)
CUBIC SPACE OCCUPIED BY THE MACHINE :
1700 x 1275 x 1700 MM

PRODUCTION PER STROKE

400 X 200 X 200 MM 4 PER CYCLE
400 X 200 X 150 MM 5 PER CYCLE
400 X 200 X 100 MM 8 PER CYCLE
PAVERS UPTO 14 PER CYCLE


This is an egg laying Hydraulic Concrete Block Making Machine on wheels. It will lay blocks on a concrete floor and move to the next position. This process eliminates the need for wood or steel pallets. The mould and ram are moved by hydraulic cylinders, which creates a much stronger block and the block maker can use less cement. Any type of blocks can be produced with consistent quality by affixing the desired mould. Several standard moulds are readily available. Custom moulds can be produced. This machine applies pressure of 2000 PSI. This machine can be used to produce hollow block, solid blocks, bricks galore and interlocking pavers.
