Concrete machinery


Concrete Vibrator Manufacturer

Concrete Vibrator Machines

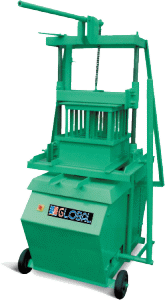

VIBRATOR CUM MANUAL OPERATED CONCRETE BLOCK MAKING MACHINE (DOUBLE)

NO. OF OPERATIONS : 50 - 55 PER HOUR
VIBRATOR MOTOR : 1.5 HP, 1 PH OR 1.5 PH, 3 PH
MACHINE WEIGHT : 750 KG (APPROX.)
MACHINE SIZE : 7 CBM (APPROX.)

PRODUCTION PER STROKE

400 X 200 X 100(4") BLOCKS 4 PER STROKE
400 X 200 X 150(6") BLOCKS 2 PER STROKE
400 X 200 X 200(8") BLOCKS 2 PER STROKE



This is a manual block making machine. Good concrete blocks with sharp edges can be produced with the use of power/vibrator. This machine can be fitted with a diesel vibrator, which is good for the use in the rural areas where there are frequent power outages. It comes equipped with a 1.5 HP Single Phase, or 1 HP 3Phase electric vibrator, 1440 RPM and weigh about 700 Kgs.
